    Product center

    Product center
    Current position：Home>Product>Transformer>Encapsulated Transformer
    Product category
      No. Part No. Type Description Image File
      501 EI4820009 Encapsulated Transformer EI48/20,230V,18/556(V/mA),10VA
      502 EI4820010 Encapsulated Transformer EI48/20,230V,18/667(V/mA),12VA
      503 EI4820011 Encapsulated Transformer EI48/20,230V,24/417(V/mA),10VA
      504 EI4820012 Encapsulated Transformer EI48/20,230V,24/500(V/mA),12VA
      505 EI4820013 Encapsulated Transformer EI48/20,230V,2*6/833(V/mA),10VA
      506 EI4820014 Encapsulated Transformer EI48/20,230V,2*6/1000(V/mA),12VA
      507 EI4820015 Encapsulated Transformer EI48/20,230V,2*9/556(V/mA),10VA
      508 EI4820016 Encapsulated Transformer EI48/20,230V,2*9/667(V/mA),12VA
      509 EI4820017 Encapsulated Transformer EI48/20,230V,2*12/417(V/mA),10VA
      510 EI4820018 Encapsulated Transformer EI48/20,230V,2*12/500(V/mA),12VA
      511 EI4820019 Encapsulated Transformer EI48/20,230V,2*15/333(V/mA),10VA
      512 EI4820020 Encapsulated Transformer EI48/20,230V,2*15/400(V/mA),12VA
      513 EI4820021 Encapsulated Transformer EI48/20,230V,2*18/278(V/mA),10VA
      514 EI4820022 Encapsulated Transformer EI48/20,230V,2*18/333(V/mA),12VA
      515 EI4820023 Encapsulated Transformer EI48/20,230V,2*24/208(V/mA),10VA
      516 EI4820024 Encapsulated Transformer EI48/20,230V,2*24/250(V/mA),12VA
      517 EI4820101 Encapsulated Transformer EI48/20,115V,6/1667(V/mA),10VA
      518 EI4820102 Encapsulated Transformer EI48/20,115V,6/2000(V/mA),12VA
      519 EI4820103 Encapsulated Transformer EI48/20,115V,9/1111(V/mA),10VA
      520 EI4820104 Encapsulated Transformer EI48/20,115V,9/1333(V/mA),12VA
      521 EI4820105 Encapsulated Transformer EI48/20,115V,12/833(V/mA),10VA
      522 EI4820107 Encapsulated Transformer EI48/20,115V,15/667(V/mA),10VA
      523 EI4820108 Encapsulated Transformer EI48/20,115V,15/800(V/mA),12VA
      524 EI4820109 Encapsulated Transformer EI48/20,115V,18/556(V/mA),10VA
      525 EI4820110 Encapsulated Transformer EI48/20,115V,18/667(V/mA),12VA
      526 EI4820111 Encapsulated Transformer EI48/20,115V,24/417(V/mA),10VA
      527 EI4820112 Encapsulated Transformer EI48/20,115V,24/500(V/mA),12VA
      528 EI4820113 Encapsulated Transformer EI48/20,115V,2*6/833(V/mA),10VA
      529 EI4820114 Encapsulated Transformer EI48/20,115V,2*6/1000(V/mA),12VA
      530 EI4820115 Encapsulated Transformer EI48/20,115V,2*9/556(V/mA),10VA
      531 EI4820116 Encapsulated Transformer EI48/20,115V,2*9/667(V/mA),12VA
      532 EI4820117 Encapsulated Transformer EI48/20,115V,2*12/417(V/mA),10VA
      533 EI4820118 Encapsulated Transformer EI48/20,115V,2*12/500(V/mA),12VA
      534 EI4820119 Encapsulated Transformer EI48/20,115V,2*15/333(V/mA),10VA
      535 EI4820120 Encapsulated Transformer EI48/20,115V,2*15/400(V/mA),12VA
      536 EI4820121 Encapsulated Transformer EI48/20,115V,2*18/278(V/mA),10VA
      537 EI4820123 Encapsulated Transformer EI48/20,115V,2*24/208(V/mA),10VA
      538 EI4820124 Encapsulated Transformer EI48/20,115V,2*24/250(V/mA),12VA

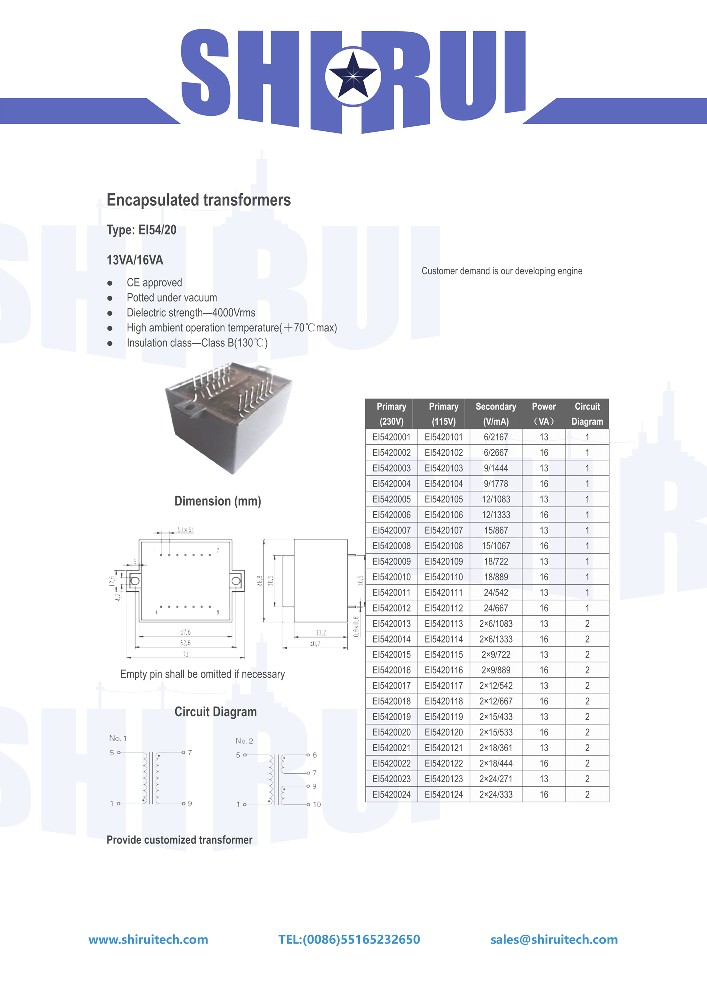

      539 EI5420001 Encapsulated Transformer EI54/20,230V,6/2167(V/mA),13VA
      540 EI5420002 Encapsulated Transformer EI54/20,230V,6/2667(V/mA),16VA
      541 EI5420003 Encapsulated Transformer EI54/20,230V,9/1444(V/mA),13VA
      542 EI5420004 Encapsulated Transformer EI54/20,230V,9/1778(V/mA),16VA
      543 EI5420005 Encapsulated Transformer EI54/20,230V,12/1083(V/mA),13VA
      544 EI5420006 Encapsulated Transformer EI54/20,230V,12/1333(V/mA),16VA
      545 EI5420007 Encapsulated Transformer EI54/20,230V,15/867(V/mA),13VA
      546 EI5420008 Encapsulated Transformer EI54/20,230V,15/1067(V/mA),16VA
      547 EI5420009 Encapsulated Transformer EI54/20,230V,18/722(V/mA),13VA
      548 EI5420010 Encapsulated Transformer EI54/20,230V,18/889(V/mA),16VA
      549 EI5420011 Encapsulated Transformer EI54/20,230V,24/542(V/mA),13VA
      550 EI5420012 Encapsulated Transformer EI54/20,230V,24/667(V/mA),16VA
      551 EI5420014 Encapsulated Transformer EI54/20,230V,2*6/1333(V/mA),16VA
      552 EI5420015 Encapsulated Transformer EI54/20,230V,2*9/722(V/mA),13VA
      553 EI5420016 Encapsulated Transformer EI54/20,230V,2*9/889(V/mA),16VA
      554 EI5420017 Encapsulated Transformer EI54/20,230V,2*12/542(V/mA),13VA
      555 EI5420018 Encapsulated Transformer EI54/20,230V,2*12/667(V/mA),16VA
      556 EI5420019 Encapsulated Transformer EI54/20,230V,2*15/433(V/mA),13VA
      557 EI5420020 Encapsulated Transformer EI54/20,230V,2*15/533(V/mA),16VA
      558 EI5420021 Encapsulated Transformer EI54/20,230V,2*18/361(V/mA),13VA
      559 EI5420022 Encapsulated Transformer EI54/20,230V,2*18/444(V/mA),16VA
      560 EI5420023 Encapsulated Transformer EI54/20,230V,2*24/271(V/mA),13VA
      561 EI5420024 Encapsulated Transformer EI54/20,230V,2*24/333(V/mA),16VA
      562 EI5420101 Encapsulated Transformer EI54/20,115V,6/2167(V/mA),13VA
      563 EI5420102 Encapsulated Transformer EI54/20,115V,6/2667(V/mA),16VA
      564 EI5420104 Encapsulated Transformer EI54/20,115V,9/1778(V/mA),16VA
      565 EI5420105 Encapsulated Transformer EI54/20,115V,12/1083(V/mA),13VA
      566 EI5420106 Encapsulated Transformer EI54/20,115V,12/1333(V/mA),16VA
      567 EI5420107 Encapsulated Transformer EI54/20,115V,15/867(V/mA),13VA
      568 EI5420108 Encapsulated Transformer EI54/20,115V,15/1067(V/mA),16VA
      569 EI5420109 Encapsulated Transformer EI54/20,115V,18/722(V/mA),13VA
      570 EI5420110 Encapsulated Transformer EI54/20,115V,18/889(V/mA),16VA
      571 EI5420111 Encapsulated Transformer EI54/20,115V,24/542(V/mA),13VA
      572 EI5420112 Encapsulated Transformer EI54/20,115V,24/667(V/mA),16VA
      573 EI5420113 Encapsulated Transformer EI54/20,115V,2*6/1083(V/mA),13VA
      574 EI5420114 Encapsulated Transformer EI54/20,115V,2*6/1333(V/mA),16VA
      575 EI5420115 Encapsulated Transformer EI54/20,115V,2*9/722(V/mA),13VA
      576 EI5420116 Encapsulated Transformer EI54/20,115V,2*9/889(V/mA),16VA
      577 EI5420117 Encapsulated Transformer EI54/20,115V,2*12/542(V/mA),13VA
      578 EI5420118 Encapsulated Transformer EI54/20,115V,2*12/667(V/mA),16VA
      579 EI5420119 Encapsulated Transformer EI54/20,115V,2*15/433(V/mA),13VA
      580 EI5420120 Encapsulated Transformer EI54/20,115V,2*15/533(V/mA),16VA
      581 EI5420121 Encapsulated Transformer EI54/20,115V,2*18/361(V/mA),13VA
      582 EI5420122 Encapsulated Transformer EI54/20,115V,2*18/444(V/mA),16VA
      583 EI5420123 Encapsulated Transformer EI54/20,115V,2*24/271(V/mA),13VA
      584 EI5420124 Encapsulated Transformer EI54/20,115V,2*24/333(V/mA),16VA

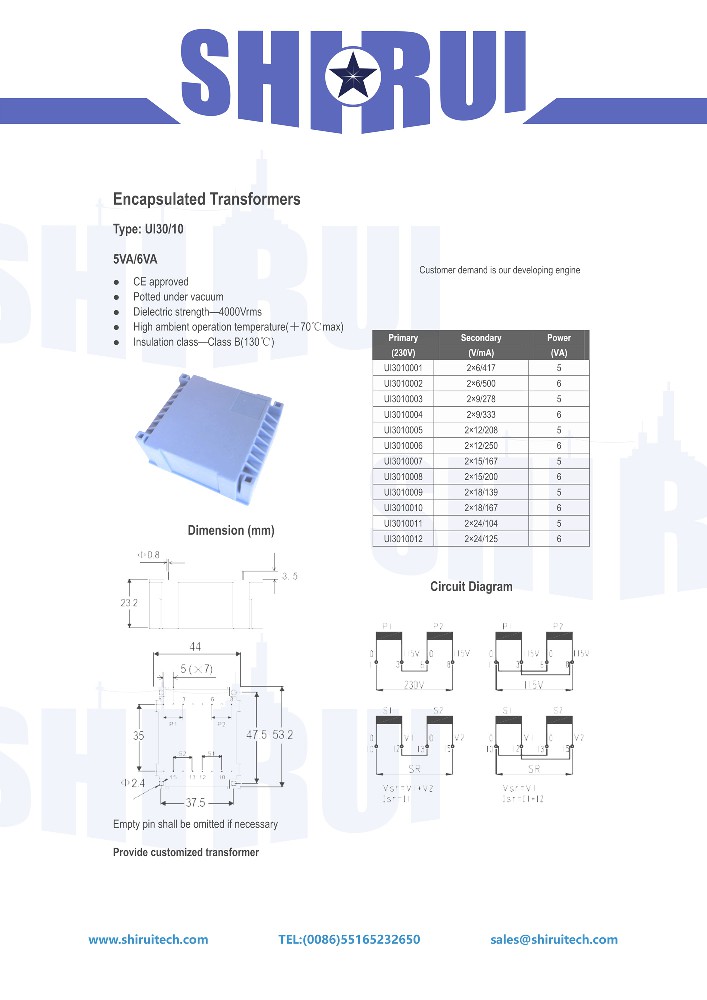

      585 UI3010001 Encapsulated Transformer UI30/10,230V,2*6/417(V/mA),5VA
      586 UI3010002 Encapsulated Transformer UI30/10,230V,2*6/500(V/mA),6VA
      587 UI3010003 Encapsulated Transformer UI30/10,230V,2*9/278(V/mA),5VA
      588 UI3010004 Encapsulated Transformer UI30/10,230V,2*9/333(V/mA),6VA
      589 UI3010005 Encapsulated Transformer UI30/10,230V,2*12/208(V/mA),5VA
      590 UI3010006 Encapsulated Transformer UI30/10,230V,2*12/250(V/mA),6VA
      591 UI3010007 Encapsulated Transformer UI30/10,230V,2*15/167(V/mA),5VA
      592 UI3010008 Encapsulated Transformer UI30/10,230V,2*15/200(V/mA),6VA
      593 UI3010009 Encapsulated Transformer UI30/10,230V,2*18/139(V/mA),5VA
      594 UI3010010 Encapsulated Transformer UI30/10,230V,2*18/167(V/mA),6VA
      595 UI3010011 Encapsulated Transformer UI30/10,230V,2*24/104(V/mA),5VA
      596 UI3010012 Encapsulated Transformer UI30/10,230V,2*24/125(V/mA),6VA
      597 EI3015115 Encapsulated Transformer EI30/15,115V,2*9/111(V/mA),2VA
      598 EI3015116 Encapsulated Transformer EI30/15,115V,2*9/133(V/mA),2.4VA
      599 EI3015117 Encapsulated Transformer EI30/15,115V,2*12/83(V/mA),2VA
      600 EI3018003 Encapsulated Transformer EI30/18,230V,9/256(V/mA),2.3VA
    ···34567
