    Current position：Home>Product>Transformer>Encapsulated Transformer
    Product category
      No. Part No. Type Description Image File
      401 EI3814113 Encapsulated Transformer EI38/14,115V,2*6/292(V/mA),3.5VA
      402 EI3814114 Encapsulated Transformer EI38/14,115V,2*6/333(V/mA),4VA
      403 EI3814115 Encapsulated Transformer EI38/14,115V,2*9/194(V/mA),3.5VA
      404 EI3814116 Encapsulated Transformer EI38/14,115V,2*9/222(V/mA),4VA
      405 EI3814117 Encapsulated Transformer EI38/14,115V,2*12/146(V/mA),3.5VA
      406 EI3814118 Encapsulated Transformer EI38/14,115V,2*12/166(V/mA),4VA
      407 EI3814119 Encapsulated Transformer EI38/14,115V,2*15/117(V/mA),3.5VA
      408 EI3814120 Encapsulated Transformer EI38/14,115V,2*15/133(V/mA),4VA
      409 EI3814121 Encapsulated Transformer EI38/14,115V,2*18/97(V/mA),3.5VA
      410 EI3814122 Encapsulated Transformer EI38/14,115V,2*18/111(V/mA),4VA
      411 EI3814123 Encapsulated Transformer EI38/14,115V,2*24/73(V/mA),3.5VA
      412 EI3814124 Encapsulated Transformer EI38/14,115V,2*24/83(V/mA),4VA

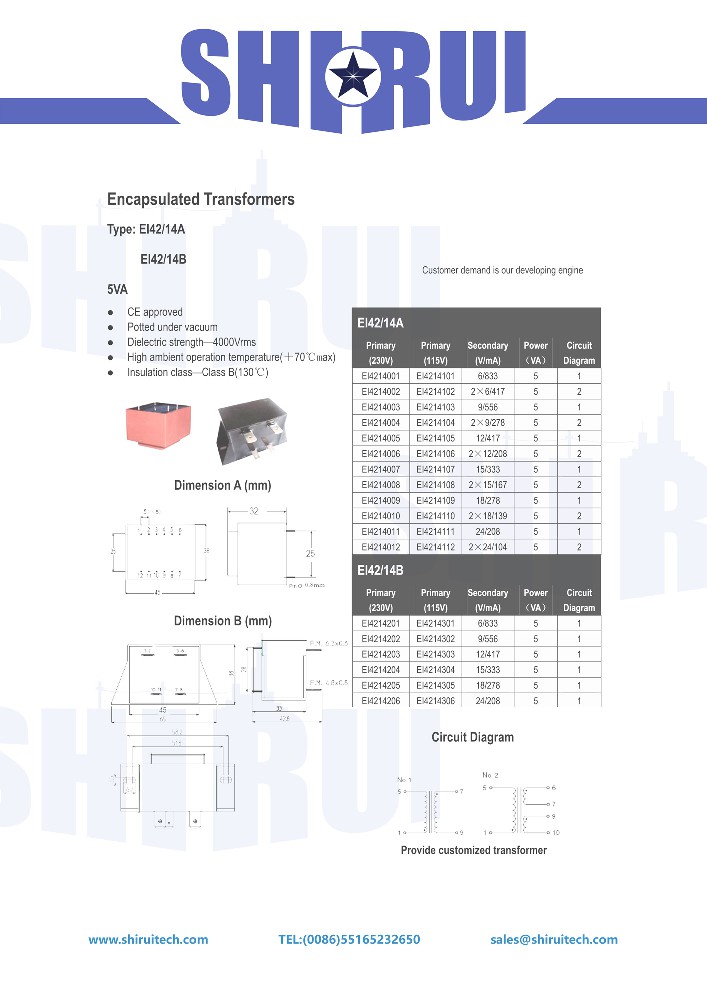

      413 EI4214001 Encapsulated Transformer EI42/14A,230V,6/833 (V/mA),5VA
      414 EI4214002 Encapsulated Transformer EI42/14A,230V,2*6/417(V/mA),5VA
      415 EI4214003 Encapsulated Transformer EI42/14A,230V,9/556(V/mA),5VA
      416 EI4214004 Encapsulated Transformer EI42/14A,230V,2*9/278(V/mA),5VA
      417 EI4214005 Encapsulated Transformer EI42/14A,230V,12/417(V/mA),5VA
      418 EI4214006 Encapsulated Transformer EI42/14A,230V,2*12/208(V/mA),5VA
      419 EI4214007 Encapsulated Transformer EI42/14A,230V,15/333(V/mA),5VA
      420 EI4214008 Encapsulated Transformer EI42/14A,230V,2*15/167(V/mA),5VA
      421 EI4214011 Encapsulated Transformer EI42/14A,230V,24/208(V/mA),5VA
      422 EI4214012 Encapsulated Transformer EI42/14A,230V,2*24/104(V/mA),5VA
      423 EI4214101 Encapsulated Transformer EI42/14A,115V,6/833 (V/mA),5VA
      424 EI4214102 Encapsulated Transformer EI42/14A,115V,2*6/417(V/mA),5VA
      425 EI4214103 Encapsulated Transformer EI42/14A,115V,9/556(V/mA),5VA
      426 EI4214104 Encapsulated Transformer EI42/14A,115V,2*9/278(V/mA),5VA
      427 EI4214105 Encapsulated Transformer EI42/14A,115V,12/417(V/mA),5VA
      428 EI4214106 Encapsulated Transformer EI42/14A,115V,2*12/208(V/mA),5VA
      429 EI4214107 Encapsulated Transformer EI42/14A,115V,15/333(V/mA),5VA
      430 EI4214108 Encapsulated Transformer EI42/14A,115V,2*15/167(V/mA),5VA
      431 EI4214109 Encapsulated Transformer EI42/14A,115V,18/278(V/mA),5VA
      432 EI4214110 Encapsulated Transformer EI42/14A,115V,2*18/139(V/mA),5VA
      433 EI4214111 Encapsulated Transformer EI42/14A,115V,24/208(V/mA),5VA
      434 EI4214112 Encapsulated Transformer EI42/14A,115V,2*24/104(V/mA),5VA
      435 EI4214201 Encapsulated Transformer EI42/14B,230V,6/833(V/mA),5VA
      436 EI4214202 Encapsulated Transformer EI42/14B,230V,9/556(V/mA),5VA
      437 EI4214203 Encapsulated Transformer EI42/14B,230V,12/417(V/mA),5VA
      438 EI4214204 Encapsulated Transformer EI42/14B,230V,15/333(V/mA),5VA
      439 EI4214205 Encapsulated Transformer EI42/14B,230V,18/278(V/mA),5VA
      440 EI4214206 Encapsulated Transformer EI42/14B,230V,24/208(V/mA),5VA
      441 EI4214301 Encapsulated Transformer EI42/14B,115V,6/833(V/mA),5VA
      442 EI4214302 Encapsulated Transformer EI42/14B,115V,9/556(V/mA),5VA
      443 EI4214303 Encapsulated Transformer EI42/14B,115V,12/417(V/mA),5VA
      444 EI4214304 Encapsulated Transformer EI42/14B,115V,15/333(V/mA),5VA
      445 EI4214305 Encapsulated Transformer EI42/14B,115V,18/278(V/mA),5VA
      446 EI4214306 Encapsulated Transformer EI42/14B,115V,24/208(V/mA),5VA

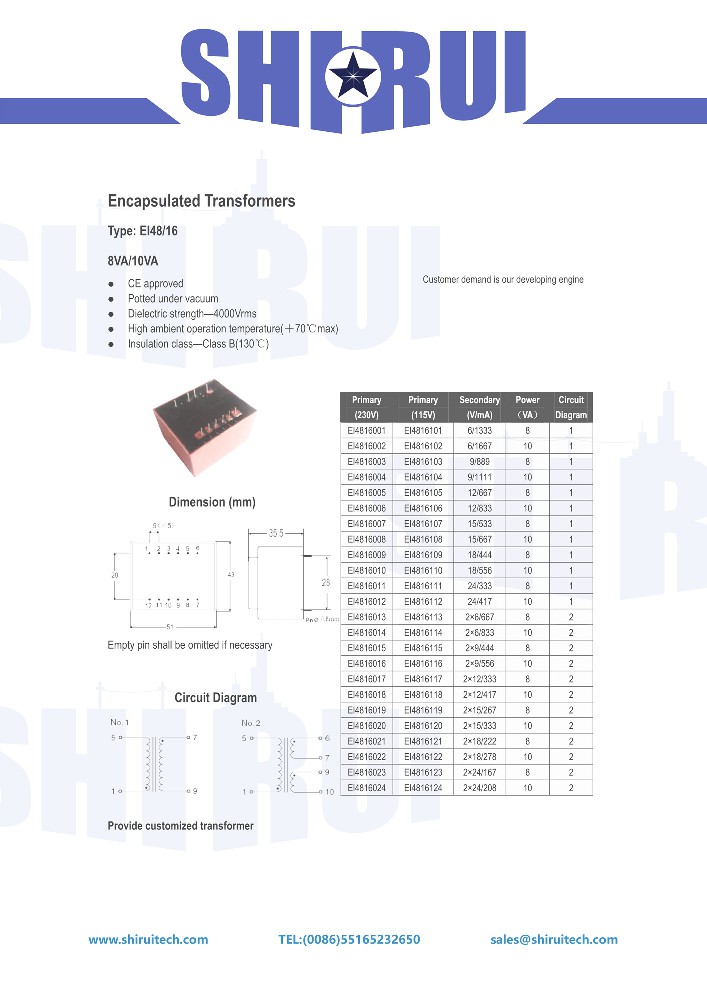

      447 EI4816001 Encapsulated Transformer EI48/16,230V,6/1333(V/mA),8VA
      448 EI4816002 Encapsulated Transformer EI48/16,230V,6/1667(V/mA),10VA
      449 EI4816004 Encapsulated Transformer EI48/16,230V,9/1111(V/mA),10VA
      450 EI4816005 Encapsulated Transformer EI48/16,230V,12/667(V/mA),8VA
      451 EI4816006 Encapsulated Transformer EI48/16,230V,12/833(V/mA),10VA
      452 EI4816007 Encapsulated Transformer EI48/16,230V,15/533(V/mA),8VA
      453 EI4816008 Encapsulated Transformer EI48/16,230V,15/667(V/mA),10VA
      454 EI4816009 Encapsulated Transformer EI48/16,230V,18/444(V/mA),8VA
      455 EI4816010 Encapsulated Transformer EI48/16,230V,18/556(V/mA),10VA
      456 EI4816011 Encapsulated Transformer EI48/16,230V,24/333(V/mA),8VA
      457 EI4816012 Encapsulated Transformer EI48/16,230V,24/417(V/mA),10VA
      458 EI4816013 Encapsulated Transformer EI48/16,230V,2*6/667(V/mA),8VA
      459 EI4816014 Encapsulated Transformer EI48/16,230V,2*6/833(V/mA),10VA
      460 EI4816015 Encapsulated Transformer EI48/16,230V,2*9/444(V/mA),8VA
      461 EI4816016 Encapsulated Transformer EI48/16,230V,2*9/556(V/mA),10VA
      462 EI4816017 Encapsulated Transformer EI48/16,230V,2*12/333(V/mA),8VA
      463 EI4816019 Encapsulated Transformer EI48/16,230V,2*15/267(V/mA),8VA
      464 EI4816020 Encapsulated Transformer EI48/16,230V,2*15/333(V/mA),10VA
      465 EI4816021 Encapsulated Transformer EI48/16,230V,2*18/222(V/mA),8VA
      466 EI4816022 Encapsulated Transformer EI48/16,230V,2*18/278(V/mA),10VA
      467 EI4816023 Encapsulated Transformer EI48/16,230V,2*24/167(V/mA),8VA
      468 EI4816024 Encapsulated Transformer EI48/16,230V,2*24/208(V/mA),10VA
      469 EI4816101 Encapsulated Transformer EI48/16,115V,6/1333(V/mA),8VA
      470 EI4816102 Encapsulated Transformer EI48/16,115V,6/1667(V/mA),10VA
      471 EI4816103 Encapsulated Transformer EI48/16,115V,9/889(V/mA),8VA
      472 EI4816104 Encapsulated Transformer EI48/16,115V,9/1111(V/mA),10VA
      473 EI4816105 Encapsulated Transformer EI48/16,115V,12/667(V/mA),8VA
      474 EI4816106 Encapsulated Transformer EI48/16,115V,12/833(V/mA),10VA
      475 EI4816107 Encapsulated Transformer EI48/16,115V,15/533(V/mA),8VA
      476 EI4816108 Encapsulated Transformer EI48/16,115V,15/667(V/mA),10VA
      477 EI4816109 Encapsulated Transformer EI48/16,115V,18/444(V/mA),8VA
      478 EI4816110 Encapsulated Transformer EI48/16,115V,18/556(V/mA),10VA
      479 EI4816111 Encapsulated Transformer EI48/16,115V,24/333(V/mA),8VA
      480 EI4816112 Encapsulated Transformer EI48/16,115V,24/417(V/mA),10VA
      481 EI4816113 Encapsulated Transformer EI48/16,115V,2*6/667(V/mA),8VA
      482 EI4816114 Encapsulated Transformer EI48/16,115V,2*6/833(V/mA),10VA
      483 EI4816115 Encapsulated Transformer EI48/16,115V,2*9/444(V/mA),8VA
      484 EI4816116 Encapsulated Transformer EI48/16,115V,2*9/556(V/mA),10VA
      485 EI4816117 Encapsulated Transformer EI48/16,115V,2*12/333(V/mA),8VA
      486 EI4816118 Encapsulated Transformer EI48/16,115V,2*12/417(V/mA),10VA
      487 EI4816119 Encapsulated Transformer EI48/16,115V,2*15/267(V/mA),8VA
      488 EI4816120 Encapsulated Transformer EI48/16,115V,2*15/333(V/mA),10VA
      489 EI4816121 Encapsulated Transformer EI48/16,115V,2*18/222(V/mA),8VA
      490 EI4816122 Encapsulated Transformer EI48/16,115V,2*18/278(V/mA),10VA
      491 EI4816123 Encapsulated Transformer EI48/16,115V,2*24/167(V/mA),8VA
      492 EI4816124 Encapsulated Transformer EI48/16,115V,2*24/208(V/mA),10VA
      493 EI4820001 Encapsulated Transformer EI48/20,230V,6/1667(V/mA),10VA
      494 EI4820002 Encapsulated Transformer EI48/20,230V,6/2000(V/mA),12VA
      495 EI4820003 Encapsulated Transformer EI48/20,230V,9/1111(V/mA),10VA
      496 EI4820004 Encapsulated Transformer EI48/20,230V,9/1333(V/mA),12VA
      497 EI4820005 Encapsulated Transformer EI48/20,230V,12/833(V/mA),10VA
      498 EI4820006 Encapsulated Transformer EI48/20,230V,12/1000(V/mA),12VA
      499 EI4820007 Encapsulated Transformer EI48/20,230V,15/667(V/mA),10VA
      500 EI4820008 Encapsulated Transformer EI48/20,230V,15/800(V/mA),12VA
    ···34567
