    Current position：Home>Product>Transformer>Encapsulated Transformer
    Product category
      No. Part No. Type Description Image File
      301 EI3018107 Encapsulated Transformer EI30/18,115V,15/153(V/mA),2.3VA
      302 EI3018108 Encapsulated Transformer EI30/18,115V,15/187(V/mA),2.8VA
      303 EI3018109 Encapsulated Transformer EI30/18,115V,18/128(V/mA),2.3VA
      304 EI3018110 Encapsulated Transformer EI30/18,115V,18/156(V/mA),2.8VA
      305 EI3018111 Encapsulated Transformer EI30/18,115V,24/96(V/mA),2.3VA
      306 EI3018112 Encapsulated Transformer EI30/18,115V,24/117(V/mA),2.8VA
      307 EI3018113 Encapsulated Transformer EI30/18,115V,2*6/192(V/mA),2.3VA
      308 EI3018114 Encapsulated Transformer EI30/18,115V,2*6/233(V/mA),2.8VA
      309 EI3018115 Encapsulated Transformer EI30/18,115V,2*9/128(V/mA),2.3VA
      310 EI3018116 Encapsulated Transformer EI30/18,115V,2*9/156(V/mA),2.8VA
      311 EI3018117 Encapsulated Transformer EI30/18,115V,2*12/96(V/mA),2.3VA
      312 EI3018118 Encapsulated Transformer EI30/18,115V,2*12/117(V/mA),2.8VA
      313 EI3018119 Encapsulated Transformer EI30/18,115V,2*15/77(V/mA),2.3VA
      314 EI3018120 Encapsulated Transformer EI30/18,115V,2*15/93(V/mA),2.8VA
      315 EI3018121 Encapsulated Transformer EI30/18,115V,2*18/64(V/mA),2.3VA
      316 EI3018122 Encapsulated Transformer EI30/18,115V,2*18/78(V/mA),2.8VA
      317 EI3018123 Encapsulated Transformer EI30/18,115V,2*24/48(V/mA),2.3VA
      318 EI3018124 Encapsulated Transformer EI30/18,115V,2*24/58(V/mA),2.8VA

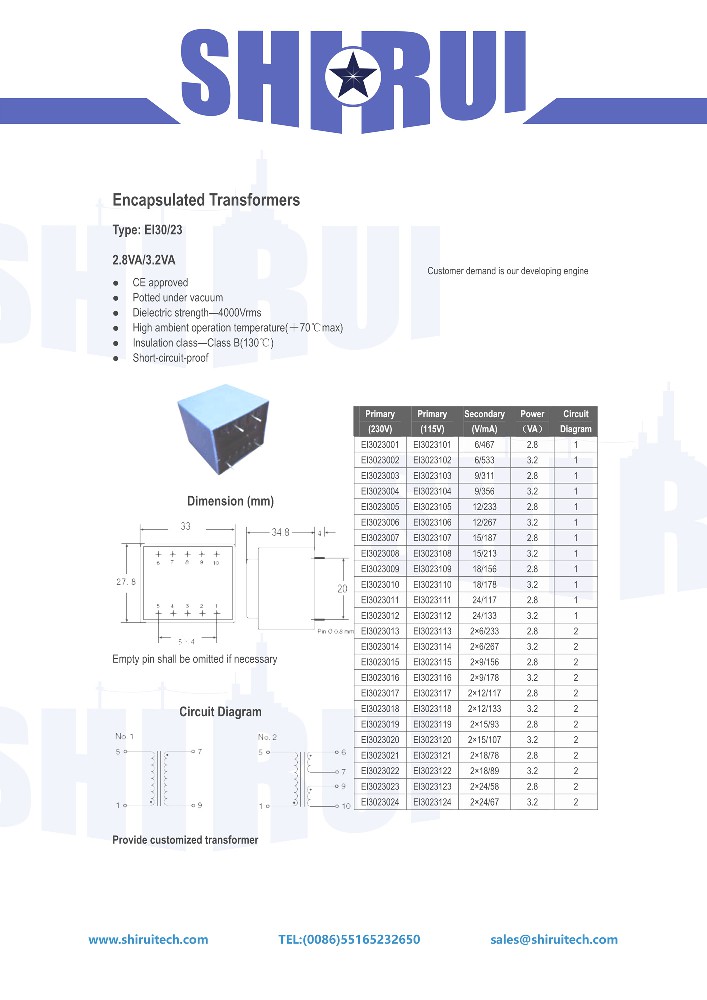

      319 EI3023001 Encapsulated Transformer EI30/23,230V,6/467(V/mA),2.8VA
      320 EI3023002 Encapsulated Transformer EI30/23,230V,6/533(V/mA),3.2VA
      321 EI3023003 Encapsulated Transformer EI30/23,230V,9/311(V/mA),2.8VA
      322 EI3023004 Encapsulated Transformer EI30/23,230V,9/356(V/mA),3.2VA
      323 EI3023005 Encapsulated Transformer EI30/23,230V,12/233(V/mA),2.8VA
      324 EI3023006 Encapsulated Transformer EI30/23,230V,12/267(V/mA),3.2VA
      325 EI3023007 Encapsulated Transformer EI30/23,230V,15/187(V/mA),2.8VA
      326 EI3023008 Encapsulated Transformer EI30/23,230V,15/213(V/mA),3.2VA
      327 EI3023009 Encapsulated Transformer EI30/23,230V,18/156(V/mA),2.8VA
      328 EI3023010 Encapsulated Transformer EI30/23,230V,18/178(V/mA),3.2VA
      329 EI3023011 Encapsulated Transformer EI30/23,230V,24/117(V/mA),2.8VA
      330 EI3023012 Encapsulated Transformer EI30/23,230V,24/133(V/mA),3.2VA
      331 EI3023013 Encapsulated Transformer EI30/23,230V,2*6/233(V/mA),2.8VA
      332 EI3023014 Encapsulated Transformer EI30/23,230V,2*6/267(V/mA),3.2VA
      333 EI3023016 Encapsulated Transformer EI30/23,230V,2*9/178(V/mA),3.2VA
      334 EI3023017 Encapsulated Transformer EI30/23,230V,2*12/117(V/mA),2.8VA
      335 EI3023018 Encapsulated Transformer EI30/23,230V,2*12/133(V/mA),3.2VA
      336 EI3023019 Encapsulated Transformer EI30/23,230V,2*15/93(V/mA),2.8VA
      337 EI3023020 Encapsulated Transformer EI30/23,230V,2*15/107(V/mA),3.2VA
      338 EI3023021 Encapsulated Transformer EI30/23,230V,2*18/78(V/mA),2.8VA
      339 EI3023022 Encapsulated Transformer EI30/23,230V,2*18/89(V/mA),3.2VA
      340 EI3023023 Encapsulated Transformer EI30/23,230V,2*24/58(V/mA),2.8VA
      341 EI3023024 Encapsulated Transformer EI30/23,230V,2*24/67(V/mA),3.2VA
      342 EI3023101 Encapsulated Transformer EI30/23,115V,6/467(V/mA),2.8VA
      343 EI3023102 Encapsulated Transformer EI30/23,115V,6/533(V/mA),3.2VA
      344 EI3023103 Encapsulated Transformer EI30/23,115V,9/311(V/mA),2.8VA
      345 EI3023104 Encapsulated Transformer EI30/23,115V,9/356(V/mA),3.2VA
      346 EI3023105 Encapsulated Transformer EI30/23,115V,12/233(V/mA),2.8VA
      347 EI3023106 Encapsulated Transformer EI30/23,115V,12/267(V/mA),3.2VA
      348 EI3023107 Encapsulated Transformer EI30/23,115V,15/187(V/mA),2.8VA
      349 EI3023108 Encapsulated Transformer EI30/23,115V,15/213(V/mA),3.2VA
      350 EI3023109 Encapsulated Transformer EI30/23,115V,18/156(V/mA),2.8VA
      351 EI3023110 Encapsulated Transformer EI30/23,115V,18/178(V/mA),3.2VA
      352 EI3023111 Encapsulated Transformer EI30/23,115V,24/117(V/mA),2.8VA
      353 EI3023112 Encapsulated Transformer EI30/23,115V,24/133(V/mA),3.2VA
      354 EI3023113 Encapsulated Transformer EI30/23,115V,2*6/233(V/mA),2.8VA
      355 EI3023114 Encapsulated Transformer EI30/23,115V,2*6/267(V/mA),3.2VA
      356 EI3023115 Encapsulated Transformer EI30/23,115V,2*9/156(V/mA),2.8VA
      357 EI3023116 Encapsulated Transformer EI30/23,115V,2*9/178(V/mA),3.2VA
      358 EI3023117 Encapsulated Transformer EI30/23,115V,2*12/117(V/mA),2.8VA
      359 EI3023118 Encapsulated Transformer EI30/23,115V,2*12/133(V/mA),3.2VA
      360 EI3023119 Encapsulated Transformer EI30/23,115V,2*15/93(V/mA),2.8VA
      361 EI3023120 Encapsulated Transformer EI30/23,115V,2*15/107(V/mA),3.2VA
      362 EI3023122 Encapsulated Transformer EI30/23,115V,2*18/89(V/mA),3.2VA
      363 EI3023123 Encapsulated Transformer EI30/23,115V,2*24/58(V/mA),2.8VA
      364 EI3023124 Encapsulated Transformer EI30/23,115V,2*24/67(V/mA),3.2VA

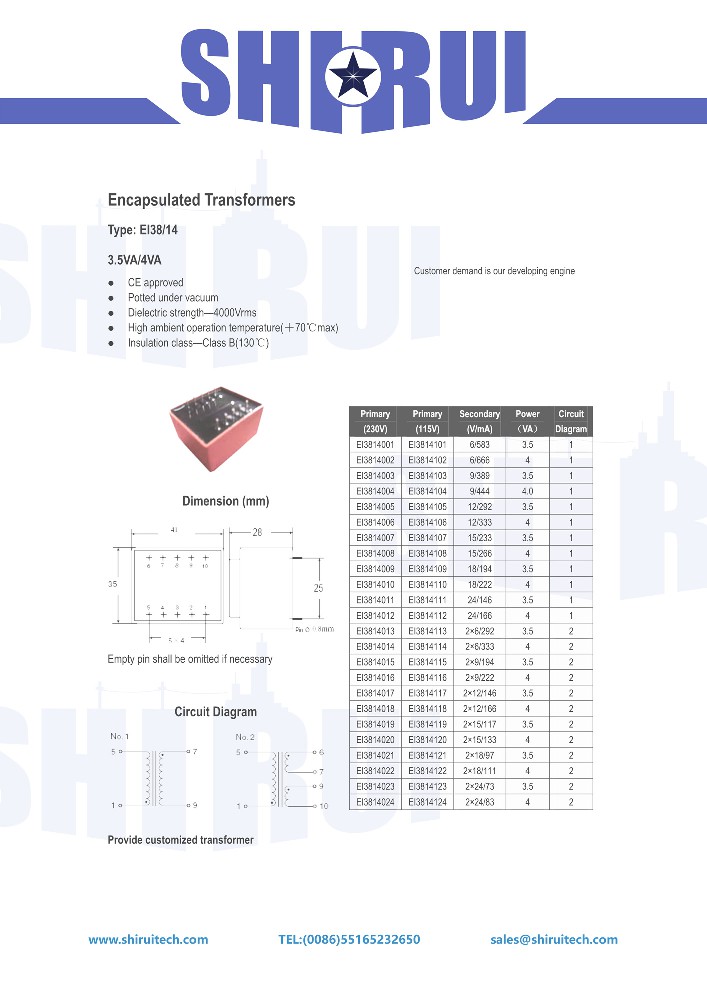

      365 EI3814001 Encapsulated Transformer EI38/14,230V,6/583(V/mA),3.5VA
      366 EI3814002 Encapsulated Transformer EI38/14,230V,6/666(V/mA),4VA
      367 EI3814003 Encapsulated Transformer EI38/14,230V,9/389(V/mA),3.5VA
      368 EI3814004 Encapsulated Transformer EI38/14,230V,9/444(V/mA),4VA
      369 EI3814005 Encapsulated Transformer EI38/14,230V,12/292(V/mA),3.5VA
      370 EI3814006 Encapsulated Transformer EI38/14,230V,12/333(V/mA),4VA
      371 EI3814007 Encapsulated Transformer EI38/14,230V,15/233(V/mA),3.5VA
      372 EI3814008 Encapsulated Transformer EI38/14,230V,15/266(V/mA),4VA
      373 EI3814009 Encapsulated Transformer EI38/14,230V,18/194(V/mA),3.5VA
      374 EI3814010 Encapsulated Transformer EI38/14,230V,18/222(V/mA),4VA
      375 EI3814011 Encapsulated Transformer EI38/14,230V,24/146(V/mA),3.5VA
      376 EI3814012 Encapsulated Transformer EI38/14,230V,24/166(V/mA),4VA
      377 EI3814013 Encapsulated Transformer EI38/14,230V,2*6/292(V/mA),3.5VA
      378 EI3814014 Encapsulated Transformer EI38/14,230V,2*6/333(V/mA),4VA
      379 EI3814015 Encapsulated Transformer EI38/14,230V,2*9/194(V/mA),3.5VA
      380 EI3814016 Encapsulated Transformer EI38/14,230V,2*9/222(V/mA),4VA
      381 EI3814017 Encapsulated Transformer EI38/14,230V,2*12/146(V/mA),3.5VA
      382 EI3814018 Encapsulated Transformer EI38/14,230V,2*12/166(V/mA),4VA
      383 EI3814019 Encapsulated Transformer EI38/14,230V,2*15/117(V/mA),3.5VA
      384 EI3814020 Encapsulated Transformer EI38/14,230V,2*15/133(V/mA),4VA
      385 EI3814021 Encapsulated Transformer EI38/14,230V,2*18/97(V/mA),3.5VA
      386 EI3814022 Encapsulated Transformer EI38/14,230V,2*18/111(V/mA),4VA
      387 EI3814023 Encapsulated Transformer EI38/14,230V,2*24/73(V/mA),3.5VA
      388 EI3814024 Encapsulated Transformer EI38/14,230V,2*24/83(V/mA),4VA
      389 EI3814101 Encapsulated Transformer EI38/14,115V,6/583(V/mA),3.5VA
      390 EI3814102 Encapsulated Transformer EI38/14,115V,6/666(V/mA),4VA
      391 EI3814103 Encapsulated Transformer EI38/14,115V,9/389(V/mA),3.5VA
      392 EI3814104 Encapsulated Transformer EI38/14,115V,9/444(V/mA),4VA
      393 EI3814105 Encapsulated Transformer EI38/14,115V,12/292(V/mA),3.5VA
      394 EI3814106 Encapsulated Transformer EI38/14,115V,12/333(V/mA),4VA
      395 EI3814107 Encapsulated Transformer EI38/14,115V,15/233(V/mA),3.5VA
      396 EI3814108 Encapsulated Transformer EI38/14,115V,15/266(V/mA),4VA
      397 EI3814109 Encapsulated Transformer EI38/14,115V,18/194(V/mA),3.5VA
      398 EI3814110 Encapsulated Transformer EI38/14,115V,18/222(V/mA),4VA
      399 EI3814111 Encapsulated Transformer EI38/14,115V,24/146(V/mA),3.5VA
      400 EI3814112 Encapsulated Transformer EI38/14,115V,24/166(V/mA),4VA
    ···23456···
