    Product center

    Product center
    Current position：Home>Product>Transformer>Encapsulated Transformer
    Product category
      No. Part No. Type Description Image File
      201 EI3012019 Encapsulated Transformer EI30/12.5,230V,2*15/50(V/mA),0.5VA
      202 EI3012020 Encapsulated Transformer EI30/12.5,230V,2*15/60(V/mA),0.6VA
      203 EI3012021 Encapsulated Transformer EI30/12.5,230V,2*18/42(V/mA),0.5VA
      204 EI3012022 Encapsulated Transformer EI30/12.5,230V,2*18/50(V/mA),0.6VA
      205 EI3012023 Encapsulated Transformer EI30/12.5,230V,2*24/31(V/mA),0.5VA
      206 EI3012024 Encapsulated Transformer EI30/12.5,230V,2*24/38(V/mA),0.6VA
      207 EI3012101 Encapsulated Transformer EI30/12.5,115V,6/250(V/mA),0.5VA
      208 EI3012102 Encapsulated Transformer EI30/12.5,115V,6/300(V/mA),0.6VA
      209 EI3012103 Encapsulated Transformer EI30/12.5,115V,9/167(V/mA),0.5VA
      210 EI3012104 Encapsulated Transformer EI30/12.5,115V,9/200(V/mA),0.6VA
      211 EI3012105 Encapsulated Transformer EI30/12.5,115V,12/125(V/mA),0.5VA
      212 EI3012106 Encapsulated Transformer EI30/12.5,115V,12/150(V/mA),0.6VA
      213 EI3012107 Encapsulated Transformer EI30/12.5,115V,15/100(V/mA),0.5VA
      214 EI3012108 Encapsulated Transformer EI30/12.5,115V,15/120(V/mA),0.6VA
      215 EI3012109 Encapsulated Transformer EI30/12.5,115V,18/83(V/mA),0.5VA
      216 EI3012110 Encapsulated Transformer EI30/12.5,115V,18/100(V/mA),0.6VA
      217 EI3012111 Encapsulated Transformer EI30/12.5,115V,24/63(V/mA),0.5VA
      218 EI3012112 Encapsulated Transformer EI30/12.5,115V,24/75(V/mA),0.6VA
      219 EI3012113 Encapsulated Transformer EI30/12.5,115V,2*6/125(V/mA),0.5VA
      220 EI3012114 Encapsulated Transformer EI30/12.5,115V,2*6/150(V/mA),0.6VA
      221 EI3012115 Encapsulated Transformer EI30/12.5,115V,2*9/83(V/mA),0.5VA
      222 EI3012116 Encapsulated Transformer EI30/12.5,115V,2*9/100(V/mA),0.6VA
      223 EI3012117 Encapsulated Transformer EI30/12.5,115V,2*12/63(V/mA),0.5VA
      224 EI3012118 Encapsulated Transformer EI30/12.5,115V,2*12/75(V/mA),0.6VA
      225 EI3012119 Encapsulated Transformer EI30/12.5,115V,2*15/50(V/mA),0.5VA
      226 EI3012120 Encapsulated Transformer EI30/12.5,115V,2*15/60(V/mA),0.6VA
      227 EI3012121 Encapsulated Transformer EI30/12.5,115V,2*18/42(V/mA),0.5VA
      228 EI3012122 Encapsulated Transformer EI30/12.5,115V,2*18/50(V/mA),0.6VA
      229 EI3012123 Encapsulated Transformer EI30/12.5,115V,2*24/31(V/mA),0.5VA
      230 EI3012124 Encapsulated Transformer EI30/12.5,115V,2*24/38(V/mA),0.6VA

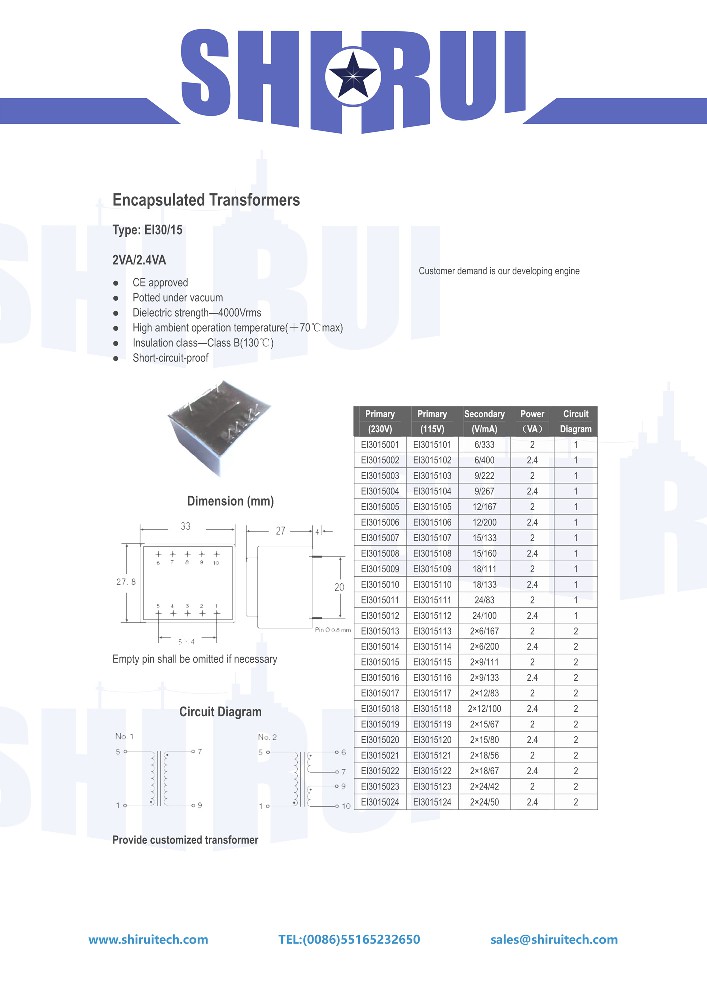

      231 EI3015001 Encapsulated Transformer EI30/15,230V,6/333(V/mA),2VA
      232 EI3015002 Encapsulated Transformer EI30/15,230V,6/400(V/mA),2.4VA
      233 EI3015003 Encapsulated Transformer EI30/15,230V,9/222(V/mA),2VA
      234 EI3015004 Encapsulated Transformer EI30/15,230V,9/267(V/mA),2.4VA
      235 EI3015005 Encapsulated Transformer EI30/15,230V,12/167(V/mA),2VA
      236 EI3015006 Encapsulated Transformer EI30/15,230V,12/200(V/mA),2.4VA
      237 EI3015008 Encapsulated Transformer EI30/15,230V,15/160(V/mA),2.4VA
      238 EI3015009 Encapsulated Transformer EI30/15,230V,18/111(V/mA),2VA
      239 EI3015010 Encapsulated Transformer EI30/15,230V,18/133(V/mA),2.4VA
      240 EI3015011 Encapsulated Transformer EI30/15,230V,24/83(V/mA),2VA
      241 EI3015012 Encapsulated Transformer EI30/15,230V,24/100(V/mA),2.4VA
      242 EI3015013 Encapsulated Transformer EI30/15,230V,2*6/167(V/mA),2VA
      243 EI3015014 Encapsulated Transformer EI30/15,230V,2*6/200(V/mA),2.4VA
      244 EI3015015 Encapsulated Transformer EI30/15,230V,2*9/111(V/mA),2VA
      245 EI3015016 Encapsulated Transformer EI30/15,230V,2*9/133(V/mA),2.4VA
      246 EI3015017 Encapsulated Transformer EI30/15,230V,2*12/83(V/mA),2VA
      247 EI3015018 Encapsulated Transformer EI30/15,230V,2*12/100(V/mA),2.4VA
      248 EI3015019 Encapsulated Transformer EI30/15,230V,2*15/67(V/mA),2VA
      249 EI3015020 Encapsulated Transformer EI30/15,230V,2*15/80(V/mA),2.4VA
      250 EI3015021 Encapsulated Transformer EI30/15,230V,2*18/56(V/mA),2VA
      251 EI3015022 Encapsulated Transformer EI30/15,230V,2*18/67(V/mA),2.4VA
      252 EI3015023 Encapsulated Transformer EI30/15,230V,2*24/42(V/mA),2VA
      253 EI3015024 Encapsulated Transformer EI30/15,230V,2*24/50(V/mA),2.4VA
      254 EI3015101 Encapsulated Transformer EI30/15,115V,6/333(V/mA),2VA
      255 EI3015102 Encapsulated Transformer EI30/15,115V,6/400(V/mA),2.4VA
      256 EI3015103 Encapsulated Transformer EI30/15,115V,9/222(V/mA),2VA
      257 EI3015104 Encapsulated Transformer EI30/15,115V,9/267(V/mA),2.4VA
      258 EI3015105 Encapsulated Transformer EI30/15,115V,12/167(V/mA),2VA
      259 EI3015106 Encapsulated Transformer EI30/15,115V,12/200(V/mA),2.4VA
      260 EI3015107 Encapsulated Transformer EI30/15,115V,15/133(V/mA),2VA
      261 EI3015108 Encapsulated Transformer EI30/15,115V,15/160(V/mA),2.4VA
      262 EI3015109 Encapsulated Transformer EI30/15,115V,18/111(V/mA),2VA
      263 EI3015110 Encapsulated Transformer EI30/15,115V,18/133(V/mA),2.4VA
      264 EI3015111 Encapsulated Transformer EI30/15,115V,24/83(V/mA),2VA
      265 EI3015112 Encapsulated Transformer EI30/15,115V,24/100(V/mA),2.4VA
      266 EI3015118 Encapsulated Transformer EI30/15,115V,2*12/100(V/mA),2.4VA
      267 EI3015119 Encapsulated Transformer EI30/15,115V,2*15/67(V/mA),2VA
      268 EI3015120 Encapsulated Transformer EI30/15,115V,2*15/80(V/mA),2.4VA
      269 EI3015121 Encapsulated Transformer EI30/15,115V,2*18/56(V/mA),2VA
      270 EI3015122 Encapsulated Transformer EI30/15,115V,2*18/67(V/mA),2.4VA
      271 EI3015123 Encapsulated Transformer EI30/15,115V,2*24/42(V/mA),2VA
      272 EI3015124 Encapsulated Transformer EI30/15,115V,2*24/50(V/mA),2.4VA

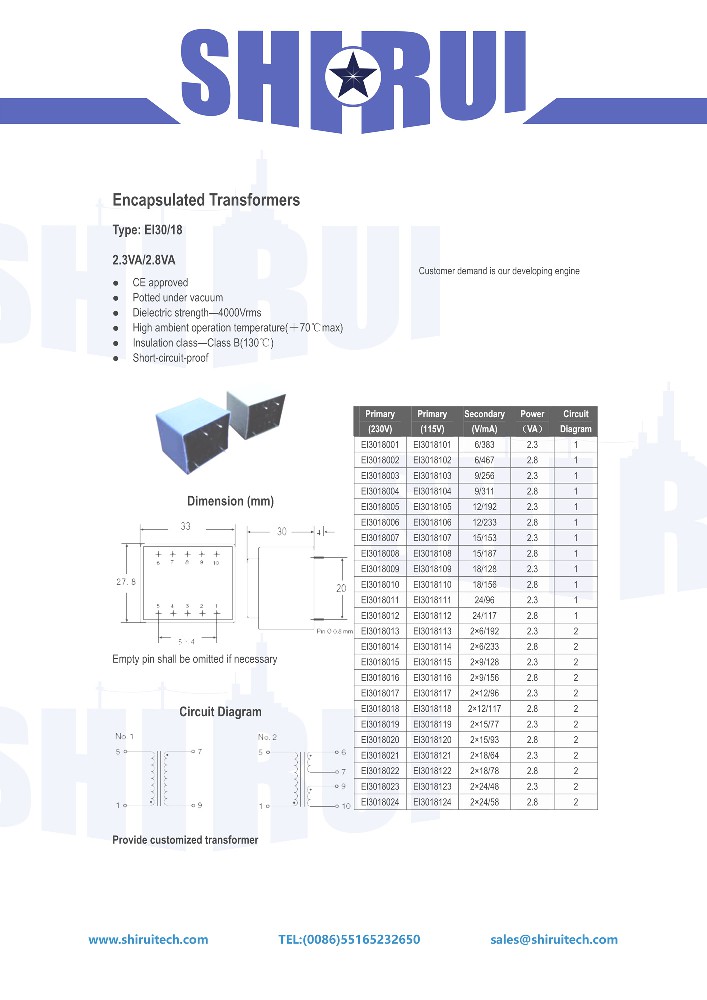

      273 EI3018001 Encapsulated Transformer EI30/18,230V,6/383(V/mA),2.3VA
      274 EI3018002 Encapsulated Transformer EI30/18,230V,6/467(V/mA),2.8VA
      275 EI3018005 Encapsulated Transformer EI30/18,230V,12/192(V/mA),2.3VA
      276 EI3018006 Encapsulated Transformer EI30/18,230V,12/233(V/mA),2.8VA
      277 EI3018007 Encapsulated Transformer EI30/18,230V,15/153(V/mA),2.3VA
      278 EI3018008 Encapsulated Transformer EI30/18,230V,15/187(V/mA),2.8VA
      279 EI3018009 Encapsulated Transformer EI30/18,230V,18/128(V/mA),2.3VA
      280 EI3018010 Encapsulated Transformer EI30/18,230V,18/156(V/mA),2.8VA
      281 EI3018011 Encapsulated Transformer EI30/18,230V,24/96(V/mA),2.3VA
      282 EI3018012 Encapsulated Transformer EI30/18,230V,24/117(V/mA),2.8VA
      283 EI3018013 Encapsulated Transformer EI30/18,230V,2*6/192(V/mA),2.3VA
      284 EI3018014 Encapsulated Transformer EI30/18,230V,2*6/233(V/mA),2.8VA
      285 EI3018015 Encapsulated Transformer EI30/18,230V,2*9/128(V/mA),2.3VA
      286 EI3018016 Encapsulated Transformer EI30/18,230V,2*9/156(V/mA),2.8VA
      287 EI3018017 Encapsulated Transformer EI30/18,230V,2*12/96(V/mA),2.3VA
      288 EI3018018 Encapsulated Transformer EI30/18,230V,2*12/117(V/mA),2.8VA
      289 EI3018019 Encapsulated Transformer EI30/18,230V,2*15/77(V/mA),2.3VA
      290 EI3018020 Encapsulated Transformer EI30/18,230V,2*15/93(V/mA),2.8VA
      291 EI3018021 Encapsulated Transformer EI30/18,230V,2*18/64(V/mA),2.3VA
      292 EI3018022 Encapsulated Transformer EI30/18,230V,2*18/78(V/mA),2.8VA
      293 EI3018023 Encapsulated Transformer EI30/18,230V,2*24/48(V/mA),2.3VA
      294 EI3018024 Encapsulated Transformer EI30/18,230V,2*24/58(V/mA),2.8VA
      295 EI3018101 Encapsulated Transformer EI30/18,115V,6/383(V/mA),2.3VA
      296 EI3018102 Encapsulated Transformer EI30/18,115V,6/467(V/mA),2.8VA
      297 EI3018103 Encapsulated Transformer EI30/18,115V,9/256(V/mA),2.3VA
      298 EI3018104 Encapsulated Transformer EI30/18,115V,9/311(V/mA),2.8VA
      299 EI3018105 Encapsulated Transformer EI30/18,115V,12/192(V/mA),2.3VA
      300 EI3018106 Encapsulated Transformer EI30/18,115V,12/233(V/mA),2.8VA
    12345···
